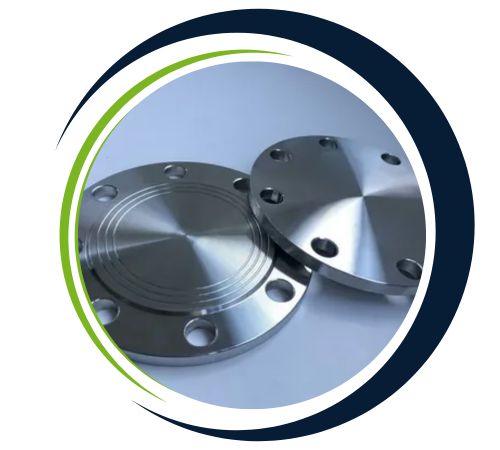

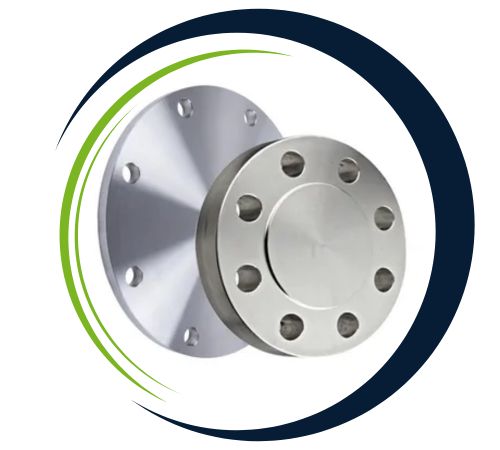

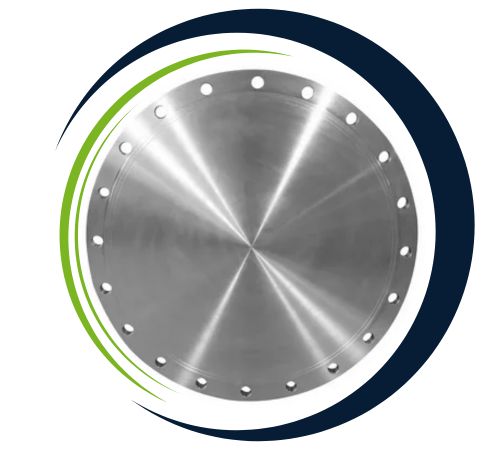

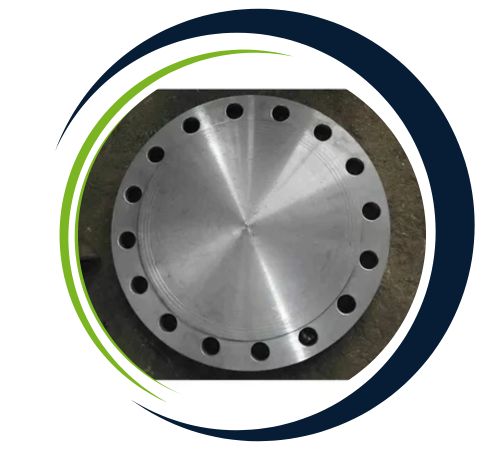

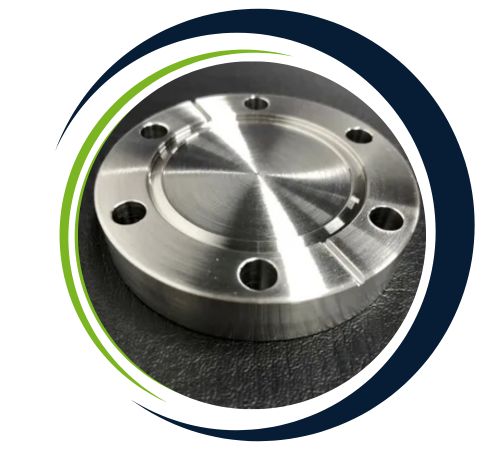

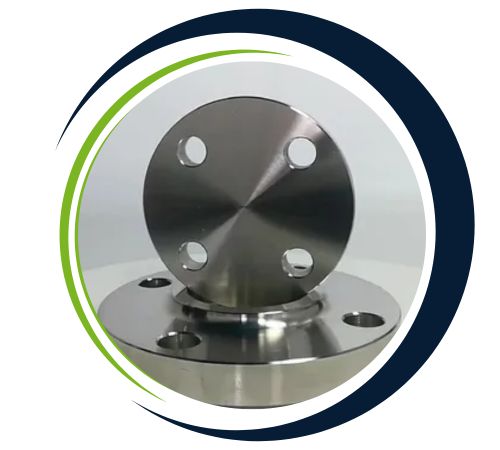

Steve Flanges is a well-respected manufacturer and supplier of **Monel Blind Flanges** based in Canberra, Australia. They focus on creating high-performance flanges that are built to withstand corrosion and last in tough industrial settings. With a wealth of experience in precision engineering, Steve Flanges crafts Monel blind flanges that adhere to international standards, ensuring dependable performance in critical piping systems. The company prides itself on its commitment to quality, cutting-edge manufacturing techniques, and prompt delivery. Catering to sectors like chemical processing, oil and gas, marine, and power generation, Steve Flanges has built a solid reputation across Australia for offering durable, reliable flange solutions that prioritize safety and efficiency.
Monel Blind flanges are made from Monel alloy typically 63-70% nickel and 28-34% copper, with trace amounts of iron and manganese. This special gives the flanges exceptional corrosion resistance especially against the sea in water and acidic solutions. They are ideal for harsh environments. Mechanically they provide high tensile strength durability and toughness at high and low temperatures. Ensure reliable performance under stress the main advantage of Monel Blind Flanges is resistance to corrosion and oxidation, protective sealing capability and suitability for high pressure system they are important in various industries.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JIS400220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 K500 Monel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Monel K500, 400 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
The **Monel Blind Flanges** provided by **Steve Flanges** are made from top-quality Monel alloy, which is famous for its outstanding resistance to corrosion, particularly in harsh environments like seawater, acidic conditions, and high temperatures. These flanges boast impressive mechanical properties, including high tensile strength, toughness, and durability even under extreme conditions. Thanks to precision machining, they achieve tight dimensional tolerances, ensuring leak-proof seals in pipeline systems. Each flange goes through rigorous quality checks to ensure they perform reliably, making them ideal for demanding industrial applications throughout Canberra and beyond.
Monel Blind Flanges are essential components for properly sealing the piping system in applications. Where reliability and corrosion resistance are critical Commonly used in marine engineering. These flanges prevent leakage in saltwater a environmental edge making it ideal for marine and offshore applications. Monel blind Flanges handle high pressure, sealing pipelines and pressure vessels during maintenance or testing. Furthermore these flanges are used by pharmaceutical machinery due to their resistance to acidic and corrosive elements. Electrical applications can also benefit from Monel Bland flanges where they provide a durable and secure closure in harsh and high-temperature environments
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
| ASME/ANSI B 16.5 | Blind Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Blind Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
The **Monel Blind Flanges** from **Steve Flanges** are commonly utilized in industries that demand exceptional corrosion resistance and effective flow isolation. Typical applications include chemical and petrochemical plants, offshore oil and gas platforms, marine engineering, seawater handling systems, and power generation facilities. These flanges are specifically designed to safely block pipelines for maintenance, inspection, or operational control. Their sturdy construction and compatibility with various pressure ratings make them a go-to choice for engineers and plant operators looking for trustworthy, high-performance flange solutions.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
