Typically, JIS B2220 20K Flanges are made from stainless steel, carbon steel, or alloy steel, tailored to meet specific service needs. This careful selection of materials guarantees impressive mechanical strength, ease of welding, and resilience against corrosion, pressure, and heat. With a nominal pressure rating of 20K (around 20 kg/cm² or 290 psi), these flanges showcase outstanding tensile and yield properties, making them suitable for high-pressure and high-temperature applications. Their exact dimensions and smooth sealing surfaces ensure a secure, leak-proof connection in critical piping systems.

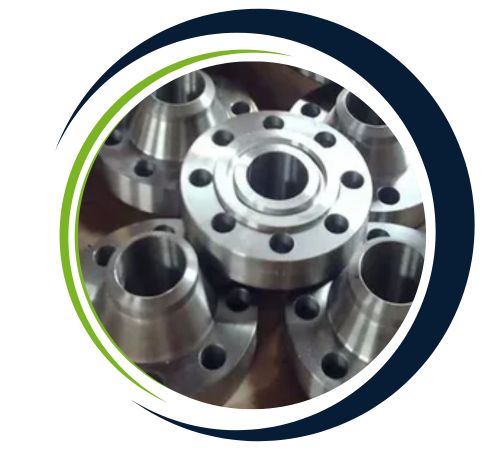

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of JIS B2220 20k Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size | (1/2″) To (48″) |
|---|---|
| Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| JIS b2220 Standard | JIS b2220 Class | Diameter Of JIS | Bolt Circle Diameter | No. of Bolts | Size Of Bolt | Bolt Hole Diameter |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
JIS B2220 20K flanges are widely used in high-pressure and high-temperature systems across various industries. Common applications include oil and gas pipelines, petrochemical plants, power plants, and water treatment facilities. These flanges are ideal for connecting pipes, valves, and equipment in systems that require a secure, leak-proof seal. They are also used in HVAC systems, chemical processing, and marine industries due to their ability to withstand harsh environments. The robust design and reliability make them crucial for demanding applications in both construction and maintenance of industrial infrastructure.
Yes, we offer custom sizes for JIS B2220 20k Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
You’ll find JIS B2220 20K Flanges widely utilized across various industries, including oil and gas, petrochemical, power generation, water treatment, shipbuilding, and chemical processing. They are ideal for linking pipes, valves, pumps, and other equipment in high-pressure pipelines. These flanges are especially designed for marine and offshore systems, where strength and resistance to corrosion are crucial. Thanks to their standardized design, they guarantee compatibility and easy assembly across different piping configurations. JIS B2220 20K Flanges deliver reliable, durable, and safe performance even in the toughest industrial conditions.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
