Steve Flanges, a top-notch manufacturer and supplier located in Canberra, Australia, has built a solid reputation for crafting high-quality GOST 12821-80 Flanges that stand out for their strength, durability, and performance. These flanges are made with premium materials and cutting-edge manufacturing techniques to comply with stringent Russian and international standards. Steve Flanges provides GOST 12821-80 Flanges in a variety of materials, pressure ratings, and sizes, ensuring they perform reliably across a wide array of industrial systems. With a strong commitment to quality assurance, precision engineering, and customer satisfaction, the company has earned its place as a trusted name in both the Australian and global flange markets.

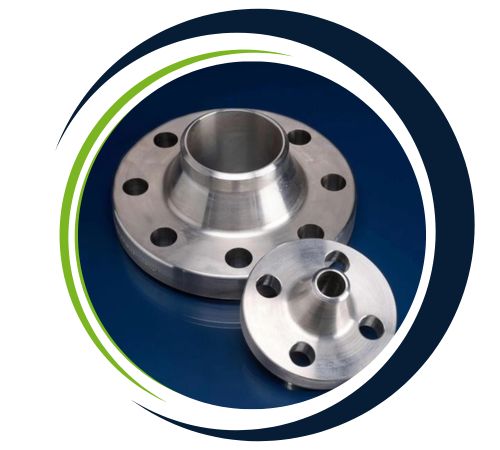

GOST 12821-80 Flanges, often referred to as weld neck flanges, are typically crafted from carbon steel, stainless steel, or alloy steel, depending on the specific service requirements. They boast impressive tensile strength ranging from 400 to 750 MPa and yield strength between 250 and 450 MPa. Designed to handle high-pressure and high-temperature situations, these flanges excel in resisting corrosion, oxidation, and mechanical stress. Their tapered neck design promotes even stress distribution, which helps reduce fatigue and boosts joint reliability. Plus, they offer excellent weldability, toughness, and precise dimensions.
| Standard | GOST / ГОСТ 12821-80 |
| Size | 1/2″ to 48″ |
| UNI | 6Bar 16Bar 10Bar 25Bar 40Bar |
| Class | 300 LBS, 150 LBS, 900 LBS, 600 LBS, 1500 LBS, 2500 LBS |
| EN | 6Bar 25Bar 10Bar 40Bar 16Bar |
| Flanges Face Type Provided By Manufacturer | RF (Raised Face), RTJ (Ring Type Joint) |
| BS | BS4504 , BS4504, BS1560, BS10 |
| Value Added Services | CNC Machining, Customised Flanges |
| Outer diameters | 1/2” to 24” |
| Making Methods Provided By Manufacturer | Casting And Forging Rolling And Cutting |
| JIS | 5K, 16 K 10 K, 20 K, 40 K, 30 K, 63 K |
| Flanges Test | Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector |
| Coating/Surface Treatment By Manufacturer | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Flanges Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Standards Provided By Manufacturer | BS4504, BS 10, API7S-15, JISB2220, BS1560-3.1, ANSI/ASME B16.5/16.36/16.47A/16.47B, EN1092, DIN, API7S-43, API605, B16.48, ISO70051, MSS S44 |

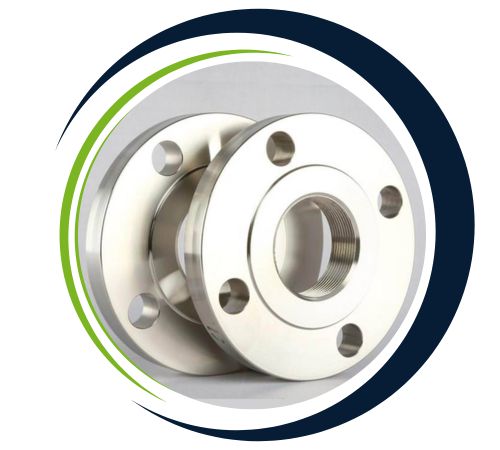

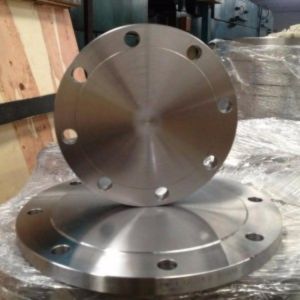

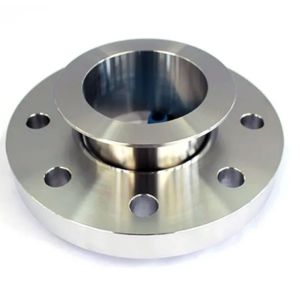

Steve Flanges a leading supplier in Canberra, Australia, offers an extensive selection of GOST 12821-80 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
These flanges are commonly found in industries like oil and gas, petrochemical, power generation, marine, and water treatment. They are perfect for connecting pipelines that transport high-pressure fluids, steam, and gases in critical systems. Typical applications include refineries, heat exchangers, boilers, pressure vessels, and process piping systems. Thanks to their robust construction and reliable sealing capabilities, they are well-suited for both onshore and offshore environments. With their strength, durability, and adherence to Russian GOST standards, GOST 12821-80 Flanges are the go-to choice for demanding industrial applications that require reliability and a long service life.
| Conditional passage Dy | (b) | (d1) | (Dn) | (Dm) | Mass, kg | ||||
| connecting projection (C) | protrusion (C) | hollow (C) | thorn (C) | groove (C) | |||||
| 10 | 10 | 8 | 15 | 22 | 0,34 | 0,34 | 0,32 | 0,34 | 0,33 |
| 15 | 12 | 19 | 28 | 0,40 | 0,40 | 0,38 | 0,40 | 0,40 | |
| 20 | 18 | 26 | 36 | 0,53 | 0,53 | 0,50 | 0,53 | 0,52 | |
| 25 | 12 | 25 | 33 | 42 | 0,76 | 0,77 | 0,72 | 0,75 | 0,75 |
| 32 | 31 | 39 | 50 | 1,10 | 1,08 | 1,04 | 1,08 | 1,08 | |
| 40 | 38 | 46 | 60 | 1,36 | 1,37 | 1,28 | 1,30 | 1,34 | |
| 50 | 49 | 58 | 70 | 1,53 | 1,51 | 1,44 | 1,46 | 1,47 | |
| 65 | 66 | 77 | 88 | 1,97 | 2,06 | 1,83 | 1,72 | 1,75 | |
| 80 | 13 | 78 | 90 | 102 | 2,76 | 2,76 | 2,80 | 2,65 | 2,72 |
| 100 | 96 | 110 | 122 | 3,35 | 3,04 | 3,03 | 3,03 | 3,04 | |
| 125 | 15 | 121 | 135 | 148 | 4,66 | 4,24 | 3,66 | 4,50 | 4,55 |
| 150 | 146 | 161 | 172 | 5,37 | 5,85 | 4,93 | 5,29 | 5,35 | |
| (175) | 17 | 177 | 196 | 210 | 7,32 | 8,10 | 6,92 | 7,11 | 7,16 |
| 200 | 202 | 222 | 235 | 8,37 | 9,35 | 7,75 | 7,98 | 8,05 | |
| (225) | 226 | 248 | 260 | 9,45 | 9,25 | 8,72 | 8,98 | 9,06 | |
| 250 | 18 | 254 | 278 | 288 | 10,99 | 10,69 | 10,14 | 12,20 | 12,30 |
| 300 | 303 | 330 | 340 | 14,82 | 14,28 | 14,10 | 13,81 | 14,11 | |
| 350 | 351 | 382 | 390 | 17,69 | 18,65 | 17,64 | 16,35 | 16,72 | |
| 400 | 398 | 432 | 440 | 20,55 | 19,69 | 19,30 | 18,83 | 19,31 | |
| (450) | 450 | 484 | 494 | 23,63 | 23,60 | 21,90 | 21,62 | 22,24 | |
| 500 | 19 | 501 | 535 | 545 | 26,63 | 29,10 | 25,90 | 24,44 | 25,10 |
| 600 | 602 | 636 | 650 | 35,79 | 35,60 | 33,40 | 37,49 | 33,67 | |
| (700) | 692 | 726 | 740 | 44,31 | 44,10 | 41,10 | 40,60 | 41,86 | |
| 800 | 792 | 826 | 844 | 56,17 | 55,20 | 52,20 | 51,67 | 53,36 | |
| (900) | 21 | 892 | 926 | 944 | 66,79 | – | – | – | – |
| 1000 | 992 | 1028 | 1044 | 73,51 | |||||
| 1200 | 23 | 1192 | 1228 | 1248 | 111,43 | ||||
| 1400 | 27 | 1392 | 1428 | 1456 | 156,58 | ||||
| 1600 | 32 | 1592 | 1628 | 1660 | 218,57 | ||||
Yes, we offer custom sizes for GOST 12821-80 Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
