Steve Flanges, a prominent manufacturer and supplier located in Canberra, Australia, has earned a solid reputation for crafting high-quality GOST 12820-80 Flanges that adhere to strict performance and durability standards. These flanges are made from top-notch materials and utilize cutting-edge production technology, ensuring they boast impressive strength, corrosion resistance, and precise dimensions. Steve Flanges provides GOST 12820-80 Flanges in a variety of pressure ratings, materials, and sizes to meet the diverse needs of different industries. With a strong focus on exceptional craftsmanship, quality control, and prompt delivery, the company has established itself as a reliable partner for businesses throughout Australia and beyond.
GOST 12820-80 Flanges, often referred to as flat welding flanges, are generally constructed from carbon steel, stainless steel, or alloy steel, depending on the specific service conditions. They showcase remarkable tensile strength ranging from 400 to 750 MPa and yield strength between 250 and 450 MPa. Designed for straightforward welding to pipes, these flanges create a robust, leak-proof connection. They also demonstrate good resistance to temperature fluctuations, mechanical stress, and corrosion. Their straightforward yet sturdy design makes installation and maintenance a breeze, ensuring dependable performance across various operating conditions.
| Standard | GOST / ГОСТ 12820-80 |
| Size | 1/2″ to 48″ |
| UNI | 6Bar 16Bar 10Bar 25Bar 40Bar |
| Class | 300 LBS, 150 LBS, 900 LBS, 600 LBS, 1500 LBS, 2500 LBS |
| EN | 6Bar 25Bar 10Bar 40Bar 16Bar |
| Flanges Face Type Provided By Manufacturer | RF (Raised Face), RTJ (Ring Type Joint) |
| BS | BS4504 , BS4504, BS1560, BS10 |
| Value Added Services | CNC Machining, Customised Flanges |
| Outer diameters | 1/2” to 24” |
| Making Methods Provided By Manufacturer | Casting And Forging Rolling And Cutting |
| JIS | 5K, 16 K 10 K, 20 K, 40 K, 30 K, 63 K |
| Flanges Test | Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector |
| Coating/Surface Treatment By Manufacturer | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Flanges Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Standards Provided By Manufacturer | BS4504, BS 10, API7S-15, JISB2220, BS1560-3.1, ANSI/ASME B16.5/16.36/16.47A/16.47B, EN1092, DIN, API7S-43, API605, B16.48, ISO70051, MSS S44 |

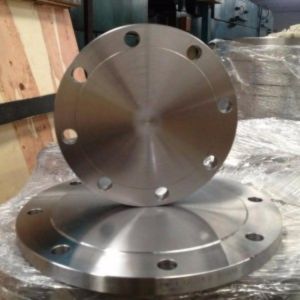

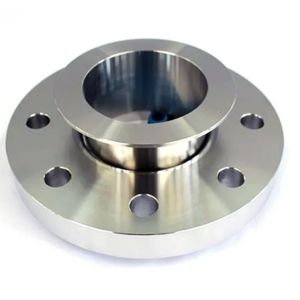

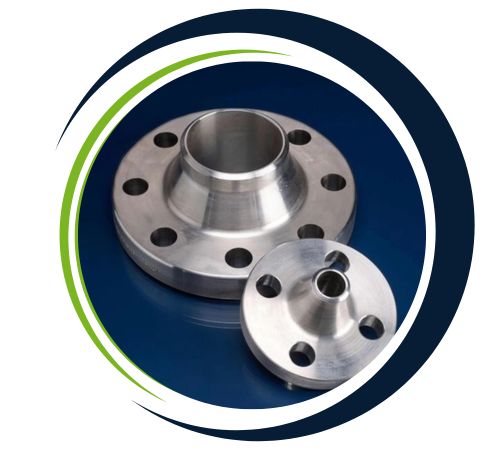

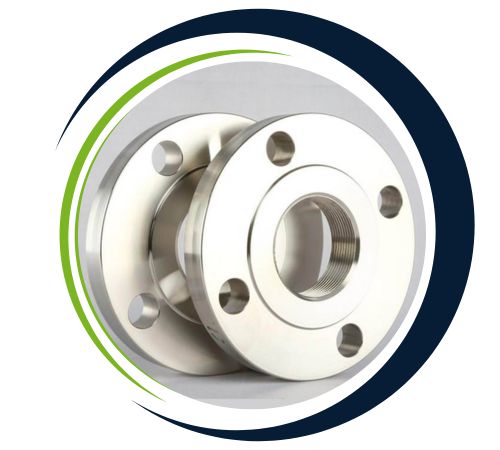

Steve Flanges a leading supplier in Canberra, Australia, offers an extensive selection of GOST 12820-80 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
These flanges find extensive use in sectors like oil and gas, petrochemical, power generation, water treatment, and shipbuilding. They are perfect for connecting piping systems that transport fluids, gases, or steam under moderate pressure. Commonly found in refineries, boiler systems, heat exchangers, and process pipelines, they are essential where reliable sealing is crucial. Their compatibility with Russian and CIS (Commonwealth of Independent States) standards makes them ideal for international projects and exports. Thanks to their strength, reliability, and cost-effectiveness, GOST 12820-80 Flanges are a go-to choice for a wide range of industrial applications.
| Pressure PN = 0.6 MPa (6 kgf/s m²) | |||||||
| Designation | D, mm | D1, mm | dv, mm | b, mm | d, mm | answer, pcs. | Mass, kg. |
| Flat flange GOST 12820-80 (01) 1-15-6 st.3 (20) | 80 | 55 | 19 | 10 | 11 | 4 | 0,33 |
| Flat flange GOST 12820-80 (01) 1-20-6 st.3 (20) | 90 | 65 | 26 | 12 | 0,53 | ||
| Flat flange GOST 12820-80 (01) 1-25-6 st.3 (20) | 100 | 75 | 33 | 12 | 0,64 | ||
| Flat flange GOST 12820-80 (01) 1-32-6 st.3 (20) | 120 | 90 | 39 | 13 | 14 | 1,01 | |
| Flat flange GOST 12820-80 (01) 1-40-6 st.3 (20) | 130 | 100 | 46 | 13 | 1,21 | ||
| Flat flange GOST 12820-80 (01) 1-50-6 st.3 (20) | 140 | 110 | 59 | 13 | 1,33 | ||
| Flat flange GOST 12820-80 (01) 1-65-6 st.3 (20) | 160 | 130 | 78 | 13 | 1,63 | ||
| Flat flange GOST 12820-80 (01) 1-80-6 st.3 (20) | 185 | 150 | 91 | 15 | 18 | 2,44 | |
| Flat flange GOST 12820-80 (01) 1-100-6 st.3 (20) | 205 | 170 | 110 | 15 | 2,85 | ||
| Flat flange GOST 12820-80 (01) 1-125-6 st.3 (20) | 235 | 200 | 135 | 17 | 8 | 3,88 | |
| Flat flange GOST 12820-80 (01) 1-150-6 st.3 (20) | 260 | 225 | 161 | 17 | 4,39 | ||
| Flat flange GOST 12820-80 (01) 1-200-6 st.3 (20) | 315 | 280 | 222 | 19 | 5,89 | ||
| Flat flange GOST 12820-80 (01) 1-250-6 st.3 (20) | 370 | 335 | 273 | 20 | 12 | 7,67 | |
| Flat flange GOST 12820-80 (01) 1-300-6 st.3 (20) | 435 | 395 | 325 | 20 | 22 | 10,28 | |
| Flat flange GOST 12820-80 (01) 1-350-6 st.3 (20) | 485 | 445 | 377 | 22 | 12,58 | ||
| Flat flange GOST 12820-80 (01) 1-400-6 st.3 (20) | 535 | 495 | 426 | 24 | 16 | 15,2 | |
| Flat flange GOST 12820-80 (01) 1-500-6 st.3 (20) | 640 | 600 | 530 | 25 | 19,72 | ||
| Flat flange GOST 12820-80 (01) 1-600-6 st.3 (20) | 755 | 705 | 630 | 25 | 26 | 20 | 26,24 |
| Flat flange GOST 12820-80 (01) 1-800-6 st.3 (20) | 975 | 920 | 820 | 27 | 30 | 24 | 46,14 |
| Flat flange GOST 12820-80 (01) 1-1000-6 st.3 (20) | 1 175 | 1 120 | 1 020 | 31 | 28 | 64,36 | |
| Flat flange GOST 12820-80 (01) 1-1200-6 st.3 (20) | 1 400 | 1 340 | 1 220 | 34 | 33 | 32 | 99,03 |
Yes, we offer custom sizes for GOST 12820-80 Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
