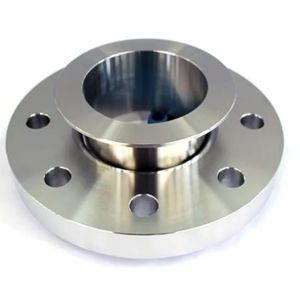

Steve Flanges, a top-notch manufacturer and supplier located in Canberra, Australia, has built a solid reputation for crafting high-quality Duplex Steel 2205 Flanges that excel in performance, strength, and resistance to corrosion. These flanges are made from premium duplex stainless steel 2205 and are produced using cutting-edge technology to comply with strict international standards. Steve Flanges provides a diverse selection of Duplex Steel 2205 Flanges in various types, sizes, and pressure ratings to cater to a wide array of industrial requirements. With a strong focus on precision engineering, reliability, and customer satisfaction, the company has established a robust presence in both the Australian and global industrial markets.
Duplex Steel 2205 Flanges primarily consist of chromium (22%), nickel (5–6%), and molybdenum (3%), with added nitrogen to boost strength and resistance. They showcase impressive tensile strength ranging from 620 to 880 MPa and yield strength between 450 and 620 MPa. The unique dual-phase austenitic-ferritic microstructure ensures exceptional mechanical stability and remarkable resistance to pitting, crevice corrosion, and chloride stress-corrosion cracking. These flanges also offer excellent toughness, weldability, and fatigue strength, even in extreme temperature and pressure situations.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 25Bar 16Bar 40Bar |
| EN | 25Bar 6Bar 10Bar 16Bar 40Bar |

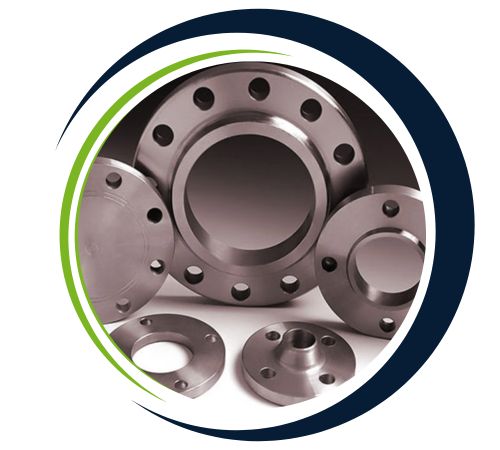

| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Male-Female (LMF), Small Tongue, Large Tongue & Groove, Groove |
| Uses & application |
|
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Coating | Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Anti-rust Paint, Yellow Transparent |
| Most common types | Threaded / Screwed / Forged / Plate |
| Equipment | Pushing Machine, Press machine, electric bevelling machine, Bending machine, Sand-blasting machine etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test | Direct-reading Spectrograph, UI trasonic flaw detector, Hydrostatic testing machine, X-ray detector, Magnetic particle detector |
| Standards | API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, API7S-15, API7S-43, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Export to | Dubai, Singapore, Indonesia, Ukraine, Korea, Iran, India, Saudi Arabia, Thailand, Egypt, Oman, Spain, Canada, USA, Ireland, Brazil, Peru, etc |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |

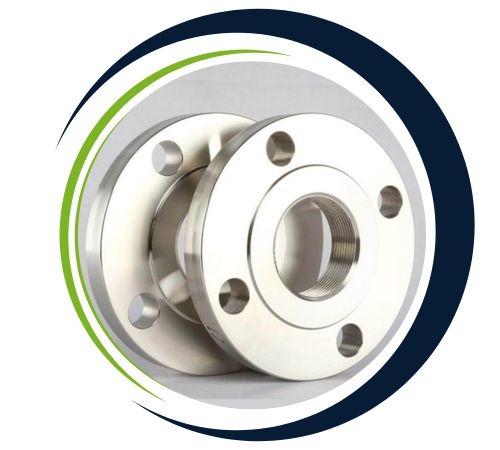

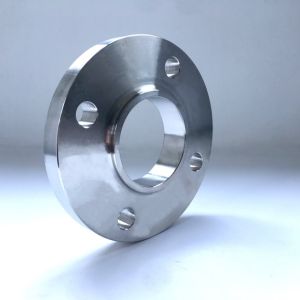

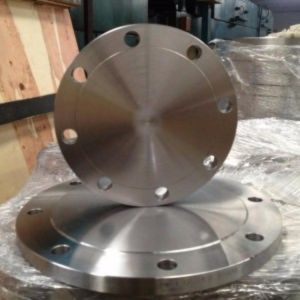

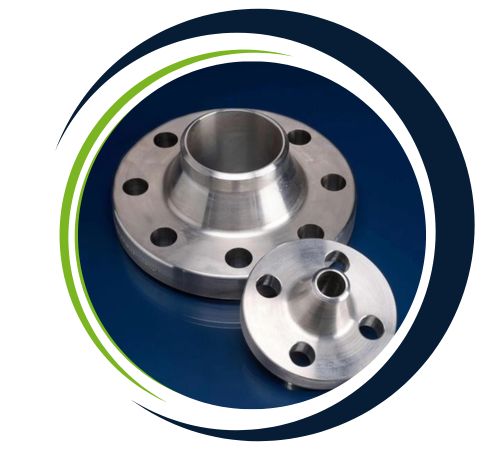

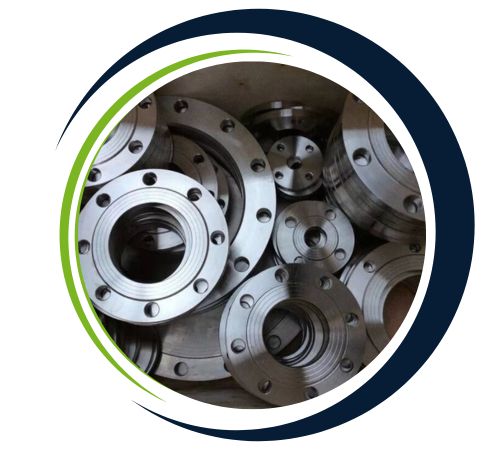

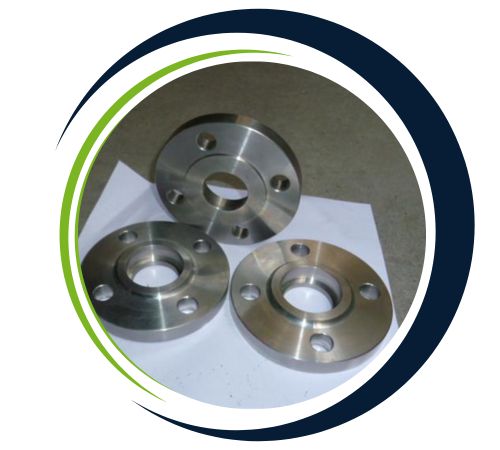

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Duplex Steel Flanges 2205, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find Duplex Steel 2205 Flanges widely used in sectors like oil and gas, petrochemical, power generation, marine, and desalination. They’re perfect for connecting pipelines and components that deal with corrosive fluids, seawater, or chemicals. Common applications include heat exchangers, pressure vessels, offshore platforms, and process piping systems. Thanks to their outstanding corrosion resistance and high strength, these flanges are ideal for tough environments where regular stainless steel might not hold up. Duplex Steel 2205 Flanges are the go-to choice for long-lasting, high-performance applications that demand durability, safety, and cost-effectiveness.
| C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C ( J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 2205 | 782 | 190 | 13.7 | 14.2 | – | 19 | – | 418 | 850 |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Yes, we offer custom sizes for Duplex Steel Flanges 2205 to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
