Steve Flanges is a top-notch manufacturer and supplier located in Canberra, Australia, specializing in high-quality Copper Nickel Spectacle Flanges that are built to last. These flanges are crafted for durability, precision, and outstanding resistance to corrosion. Adhering to international standards, they’re perfect for marine, offshore, and industrial settings where reliable pipeline isolation and seawater resistance are a must. The Copper Nickel Spectacle Flanges from Steve Flanges are designed for easy operation, allowing for quick transitions between open and closed positions, making maintenance and inspections a breeze. With their remarkable strength and anti-corrosive features, these flanges guarantee safe and efficient performance even in the toughest environments.
Typically made from copper-nickel alloys like 90/10 (Cu-Ni 90/10) and 70/30 (Cu-Ni 70/30), these flanges consist of copper, nickel, iron, and manganese. This combination offers exceptional resistance to seawater corrosion, biofouling, and erosion, along with impressive tensile and yield strength. They hold up well under high pressure and temperature, providing excellent ductility and toughness. The blend of copper and nickel not only boosts their lifespan but also ensures they require minimal maintenance, even in harsh marine conditions.
| Specification | ASTM B151 / ASME SB151 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.48, B16.47 Series A & B, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.48/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B151 90/10 Copper Nickel Flanges |
| Grades | Copper Nickel 70/30, 90/10 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Copper Nickel Spectacle Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Copper-nickel spectacle flanges find extensive application in marine and industrial applications, especially in seawater systems, as a result of their superior resistance to corrosion, especially in the presence of sea water. Flanges are suited for simple pipeline isolation allowing for a reliable and leak-tight connection. Due to their superior strength and resistance to rough conditions these flanges have extensive application in shipbuilding, offshore platforms desalination plants and chemical processing. The excellent strength and resistance to biofouling position copper-nickel spectacle flanges as the best choice for leakage prevention and system longevity.
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Cupro Nickel 90/10 | 2.0872 | C70600 |
| Cupro Nickel 70/30 | 2.0882 | C71500 |
| ASME/ANSI B 16.48 | Spectacle Blind Flange |
| PRESSURE CLASS | 150, 300, 90/10, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Threaded Flange |
| PRESSURE CLASS | 75, 150, 300, 90/10, 600, 900 |
| ASME/ANSI B 16.36 | Spectacle Blind Flange |
| PRESSURE CLASS | 300, 90/10, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 90/10 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 90/10, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Copper Nickel Spectacle Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.

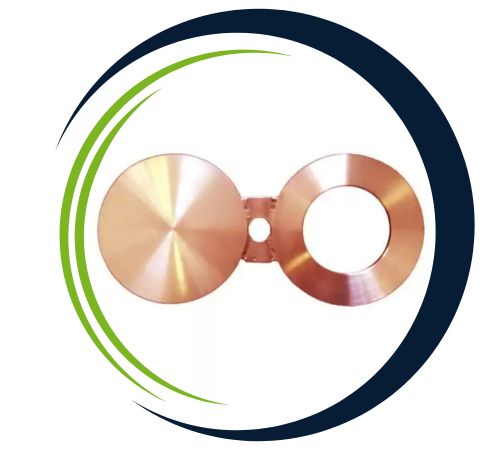

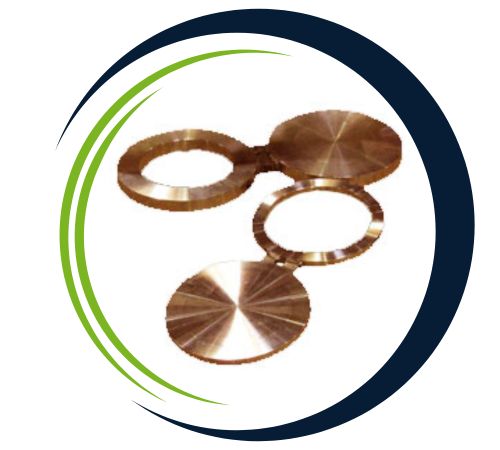

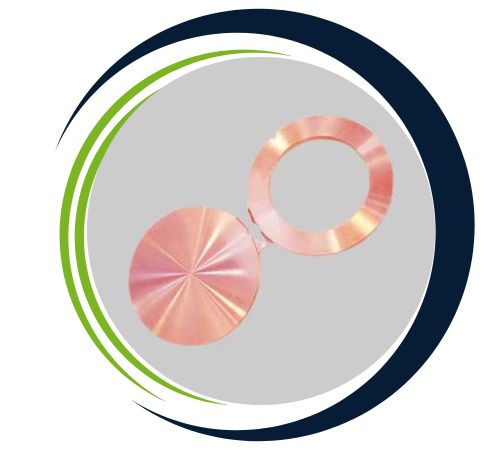

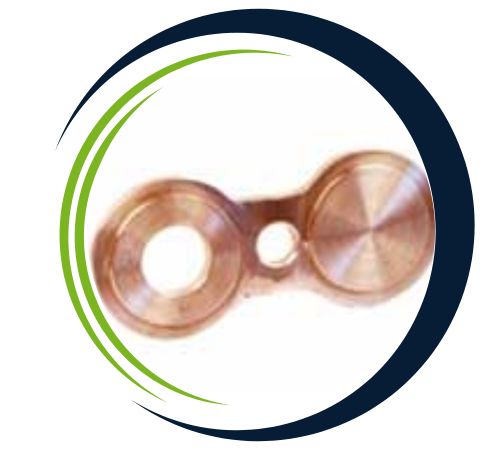

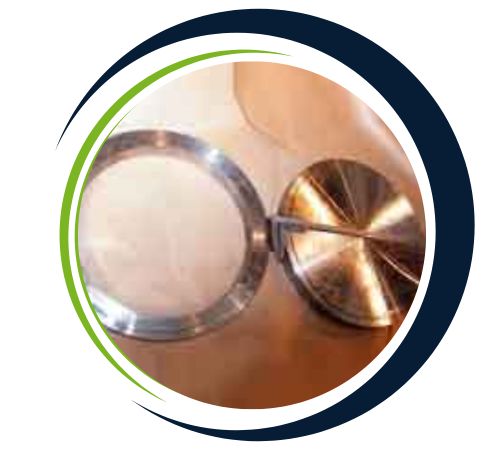

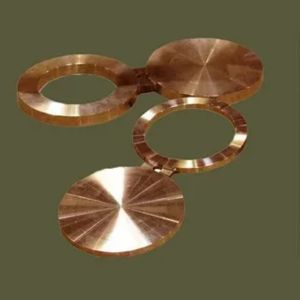

Copper Nickel Spectacle Flanges find their place in various applications, including marine engineering, desalination plants, offshore platforms, shipbuilding, and heat exchanger systems. They play a crucial role in pipeline isolation, allowing for safe maintenance and inspection of piping systems without the need for complete disassembly. The spectacle design features two discs—one solid (blank) and one open (spacer)—connected by a web or hinge, which allows for easy rotation to control the flow. With their superior corrosion resistance, strength, and user-friendly handling, Copper Nickel Spectacle Flanges from Steve Flanges deliver reliable and long-lasting solutions for essential marine and industrial piping needs.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
