Steve Flanges stands out as a top manufacturer and supplier of Incoloy Socket Weld Flanges in Canberra, Australia. They’ve built a reputation for precision engineering, exceptional quality, and a strong focus on customer service. With years of experience under their belt, Steve Flanges delivers durable, corrosion-resistant products that meet international standards. The company specializes in Incoloy flanges that are perfect for high-temperature and high-pressure settings. Thanks to their state-of-the-art manufacturing facilities and a talented team of professionals, Steve Flanges guarantees reliable performance, precise dimensions, and timely delivery, making them a trusted name in Australia’s industrial and engineering sectors.
The Incoloy Socket Weld Flanges from Steve Flanges in Canberra are primarily made of nickel, iron, and chromium, with added molybdenum, titanium, and copper to boost strength and corrosion resistance. These materials offer excellent oxidation resistance and mechanical stability, even in extreme conditions. The flanges boast high tensile strength, impressive creep resistance, and remarkable toughness, even at elevated temperatures. Their mechanical properties make them perfect for demanding industrial applications where durability, weldability, and structural integrity are crucial.

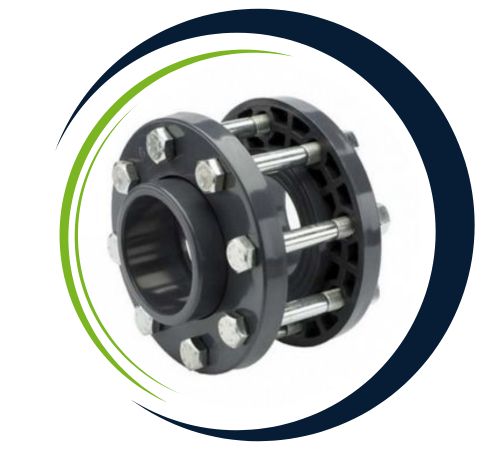

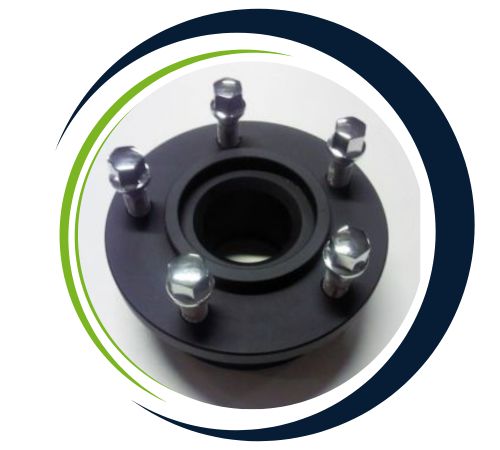

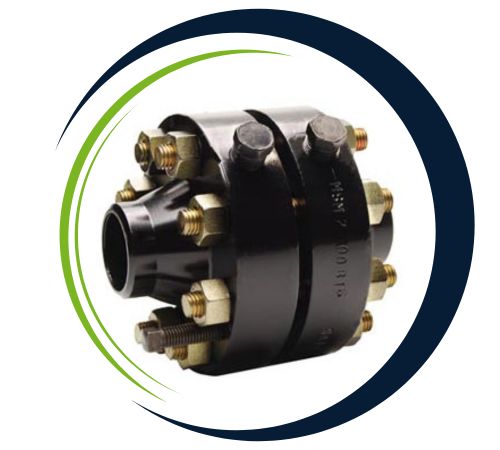

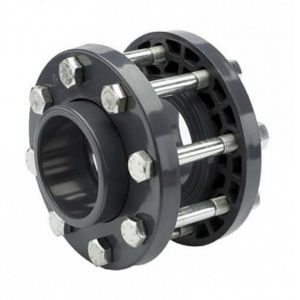

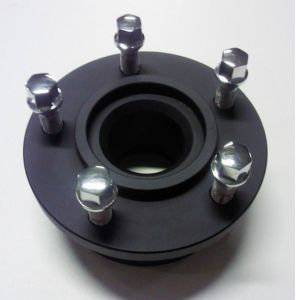

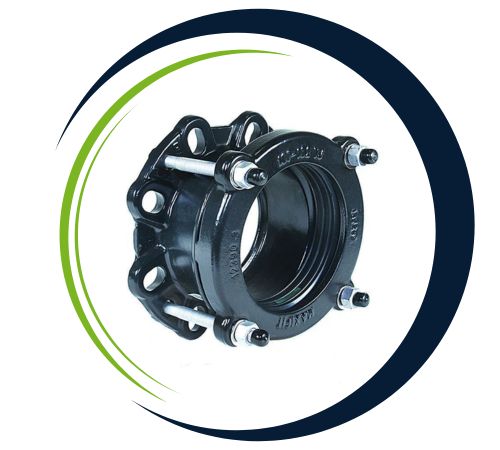

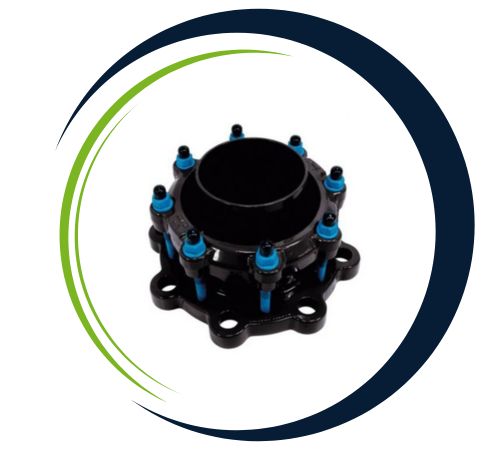

Steve Flanges, a premier supplier in Canberra, Australia, specializes in high-quality Carbon Steel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.

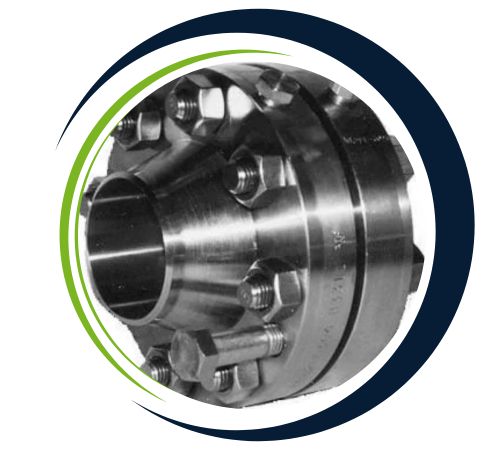

Carbon Steel Orifice Flanges Specifications: ASTM A105/ ASME SA105
Carbon Steel Orifice Flanges Dimensions: ANSI/ASME B16.36, Series A & B, BS4504, BS 10, EN-1092, DIN, etc.
Carbon Steel Orifice Flanges Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Carbon Steel Orifice Flanges : Size :1/2″ (15 NB) to 48″ (1200NB)
Carbon Steel Orifice Flanges Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

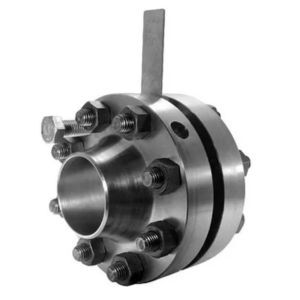

Carbon Steel Orifice Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Hub OD | Weld Neck OD | Welding Neck Length | RF Dia. | RF Height | PCD | Orifice Hole dia | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | F | G | H | I | ||||||||
| 1 | 25 | 125 | 36.6 | 54 | 33.4 | 81 | 50.8 | 2 | 88.9 | 6.4 | 4 | 5/8 | 125 | 3/4 | M16 | 4.5 |
| 1 1/2 | 40 | 155 | 36.6 | 70 | 48.3 | 84 | 73 | 2 | 114.3 | 6.4 | 4 | 3/4 | 135 | 7/8 | M20 | 6.5 |
| 2 | 50 | 165 | 36.6 | 84 | 60.3 | 84 | 92.1 | 2 | 127 | 6.4 | 8 | 5/8 | 125 | 3/4 | M16 | 7 |
| 2 1/2 | 65 | 190 | 36.6 | 100 | 73 | 87 | 104.8 | 2 | 149.2 | 6.4 | 8 | 3/4 | 135 | 7/8 | M20 | 7.5 |
| 3 | 80 | 210 | 36.6 | 117 | 88.9 | 87 | 127 | 2 | 168.3 | 9.5 | 8 | 3/4 | 135 | 7/8 | M20 | 9.4 |
| 4 | 100 | 255 | 36.6 | 146 | 114.3 | 90 | 157.2 | 2 | 200 | 12.7 | 8 | 3/4 | 135 | 7/8 | M20 | 13.2 |
| 6 | 150 | 320 | 36.6 | 206 | 168.3 | 98 | 215.9 | 2 | 269.9 | 12.7 | 12 | 3/4 | 135 | 7/8 | M20 | 14.6 |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 12.7 | 12 | 7/8 | 145 | 1 | M24 | 30 |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.3 | 12.7 | 16 | 1 | 165 | 1 1/8 | M27 | 41 |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 12.7 | 16 | 1 1/8 | 180 | 1 1/4 | M30 | 62 |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 12.7 | 20 | 1 1/8 | 185 | 1 1/4 | M30 | 84 |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 12.7 | 20 | 1 1/4 | 195 | 1 3/8 | M33 | 111 |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 12.7 | 24 | 1 1/4 | 205 | 1 3/8 | M33 | 138 |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 12.7 | 24 | 1 1/4 | 215 | 1 3/8 | M33 | 171 |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 12.7 | 24 | 1 1/2 | 240 | 1 5/8 | M39 | 247 |
Carbon steel orifice flanges find applications in numerous industrial processes to meter liquid or gas flow through pipes. The flanges are used to support orifice plates, which produce a pressure difference and assist in taking into account flow. Common uses involve oil and gas installations, power generation plants, chemical processing facilities, water treatment facilities, and air conditioning and heating systems. It is usually applied in several uses where precise measurement of flow is needed to maintain process control and efficiency. Carbon steel has strength, cost and longevity and is perfect for high-pressure and high-temperature applications.
Steve Flanges’ Incoloy Socket Weld Flanges, crafted in Canberra, Australia, are widely utilized in industries that need strong and corrosion-resistant connections. These flanges are particularly suited for chemical processing, power generation, marine engineering, heat exchangers, oil and gas refineries, and nuclear plants. Their outstanding resistance to oxidation and scaling in high-temperature environments ensures reliable performance and a long service life. Incoloy socket weld flanges are especially ideal for pipelines that transport acidic or corrosive fluids. With their precise fit and robust weld joint, they create a leak-free and secure connection for critical industrial operations.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
