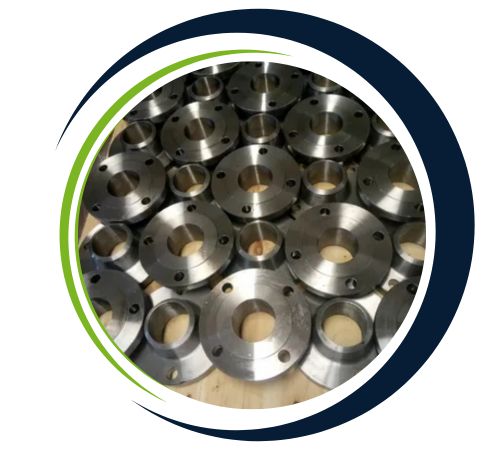

Steve Flanges stands out as a top-notch manufacturer and supplier of **API – Type 6BX Welding Neck Flanges 10,000 PSI** right in Canberra, Australia. They offer high-quality flange solutions that are built to withstand extreme pressure and temperature conditions. With a keen emphasis on precision engineering and adherence to international standards, Steve Flanges crafts durable and dependable welding neck flanges that are essential for critical applications in the oil, gas, and petrochemical industries. Each flange is produced using cutting-edge manufacturing techniques and top-grade materials, ensuring leak-proof connections, exceptional strength, and a long lifespan. Steve Flanges is dedicated to providing excellence, safety, and performance with every flange they deliver.
API Type 6BX Welding Neck Flanges are crafted with high-quality materials including carbon steel, stainless steel, and high-strength alloys, with a rating of 10,000 PSI. These materials offer superior strength and corrosion resistance, providing consistent performance under high-pressure conditions. The flanges are engineered to provide outstanding mechanical properties, such as tensile strength of 70,000 to 100,000 PSI, yield strength of up to 50,000 PSI, and robust resistance to thermal expansion and compressive stress. Major benefits include superior leak prevention, weldability and installation ease, improved structural integrity and the capacity to withstand extreme operating stresses. These characteristics make them critical for heavy-duty applications within the oil & gas, petrochemical and offshore environments.
The **API – Type 6BX Welding Neck Flanges 10,000 PSI** from **Steve Flanges in Canberra, Australia**, are crafted from high-quality alloy and stainless steels like ASTM A182 F22, F51, or similar grades, guaranteeing impressive strength and resistance to corrosion. These flanges boast remarkable mechanical properties, including high tensile and yield strength, outstanding impact resistance, and precise dimensional accuracy. Designed to handle pressures up to 10,000 PSI, they maintain their structural integrity and sealing capability even in the toughest operating conditions. Advanced heat treatment and surface finishing further boost their durability, making them perfect for high-pressure and high-temperature environments.
| Specification Table Of : | API Type 6BX Flange |
| ADNOC Approved Manufacturer Of Standards | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Temperature Ratings | 150 LB To 2500 LB |
| Size Chart | (1/2″) To (48″) |
| Manufacturing Process |
|
| Face Type Details | Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face. |
| Forging Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness | NPS ≤ 18 |
| Flanges High Temperature | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Our Top Selling Products | Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On |
| Buy Flanges For Pipe Connection | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Type Of Making Format | Plate /Forged/ Threaded |
| Bore Diameter | NPS ≤ 10 |
| Normal Pipe Sizes | Daimeter Of Flanges | Daimeter Of RTJ | Hight Of Flanges | Flanges Bolting | Flanges Hub | RING | ||||||||
| Normal Pipe Sizes | Outside Daimeter | C | K | P | T | Q | LN | BC | N | H | X | HL | JL | R / RX |
| 2-1/16″ | 215 | 3 | 124 | 95.25 | 46.1 | 38.1 | 109.5 | 165.10 | 8 | 26 | 104.8 | 60.3 | 43.7 | 24 |
| 2-9/16″ | 245 | 3 | 137 | 107.95 | 49.3 | 41.3 | 112.7 | 190.50 | 8 | 29 | 123.8 | 73.0 | 54.9 | 27 |
| 3-1/8″ | 265 | 3 | 168 | 136.53 | 55.6 | 47.7 | 125.4 | 203.20 | 8 | 32 | 133.3 | 88.9 | 67.5 | 35 |
| 4-1/16″ | 310 | 3 | 194 | 161.93 | 62.0 | 54.0 | 131.8 | 241.30 | 8 | 35 | 161.9 | 114.3 | 88.1 | 39 |
| 5-1/8″ | 375 | 3 | 229 | 193.68 | 81.0 | 73.1 | 163.5 | 292.10 | 8 | 42 | 196.8 | 141.3 | 110.3 | 44 |
| 7-1/16″ | 395 | 6 | 248 | 211.15 | 92.1 | 82.6 | 181.0 | 317.50 | 12 | 39 | 228.6 | 168.3 | 132.6 | 46 |
| 9″ | 485 | 6 | 318 | 269.88 | 103.2 | 92.1 | 223.8 | 393.70 | 12 | 45 | 292.1 | 219.1 | 173.8 | 50 |
| 11″ | 585 | 6 | 371 | 323.85 | 119.1 | 108.0 | 265.1 | 482.60 | 12 | 51 | 368.3 | 273.1 | 216.7 | 54 |
API Type 6BX Welding Neck Flanges rated at 10,000 PSI are used in high-pressure systems where secure, leak-proof connections are critical. Commonly found in oil and gas, petrochemical and offshore industries they are ideal for pipelines, pressure vessels, wellheads and subsea equipment. These flanges withstand extreme pressures, temperatures and corrosive environments. Ensuring durability and operational safety. Their robust design supports structural integrity in blowout preventers, reactors and high-stress piping systems. Making them essential for both onshore and offshore high-pressure applications requiring long-term reliability.
| NPS In Inch. | DN In MM | Flange Outside Daimeter A In MM | Flange Thickness D In MM | API 6a SORF Flange Weight In KG | API 6a WN Flange Weight In KG | API 6a BLRF Flange Weight In KG |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
**API – Type 6BX Welding Neck Flanges 10,000 PSI**, produced and supplied by **Steve Flanges in Canberra, Australia**, are commonly utilized in high-pressure oilfield piping systems, drilling equipment, production manifolds, and subsea installations. Their tapered hub design ensures excellent stress distribution at the base of the flange, minimizing the risk of fatigue failure during continuous pressure cycles. These flanges are perfect for connecting pipes, valves, and equipment in refineries, offshore platforms, and power generation facilities. With their impressive strength, corrosion resistance, and leak-proof performance, they are a reliable choice for demanding applications.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
