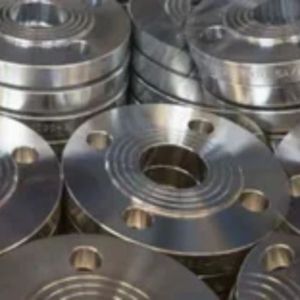

Steve Flanges, established in Canberra, Australia, is a renowned manufacturer and distributor of premium flanges, primarily dealing in ANSI B16.5 Class 1500 flanges. Due to its long-standing reputation for accuracy in engineering and dependable operation, Steve Flanges provides various types of flanges that comply with industry specifications and customer orders. Their ANSI B16.5 Class 1500 flanges are renowned for their strength and superior pressure handling capacity, which makes them suitable for rigorous applications in different industries, such as oil and gas, chemical, and petrochemical industries. Steve Flanges is dedicated to delivering superior products and service.
Steve Flanges is a well-respected manufacturer and supplier located in Canberra, Australia, known for crafting top-notch ANSI B16.5 Class 1500 Flanges that excel in strength, precision, and reliability. These flanges are built to meet ANSI B16.5 standards, making them perfect for high-pressure and high-temperature applications in demanding industries. At Steve Flanges, every Class 1500 Flange is rigorously manufactured and inspected to ensure it meets global quality standards. Renowned for their excellent sealing capabilities and sturdy construction, these flanges are a go-to choice in critical piping systems where performance, durability, and safety are paramount.

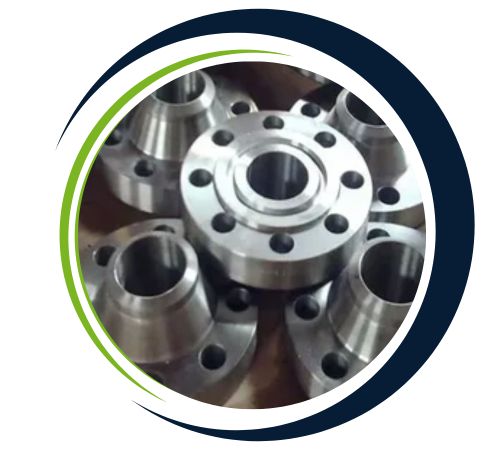

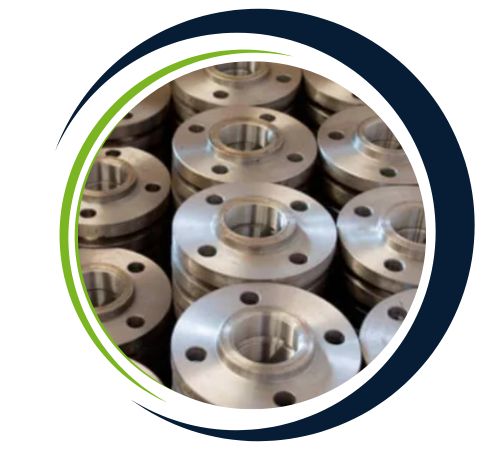

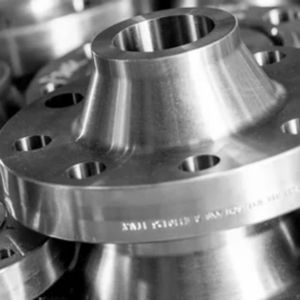

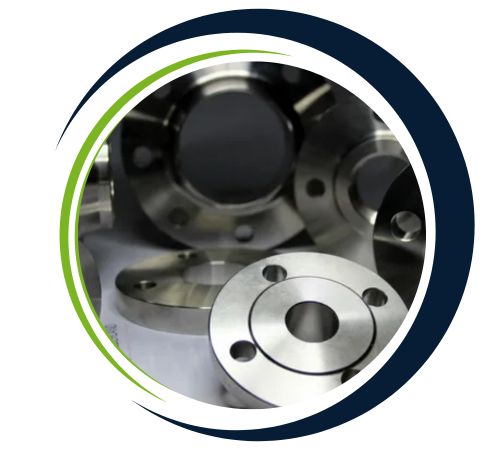

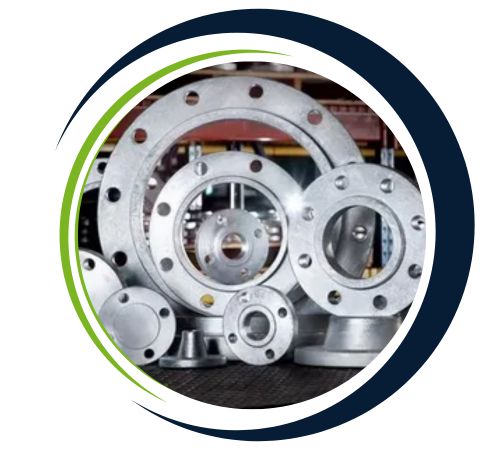

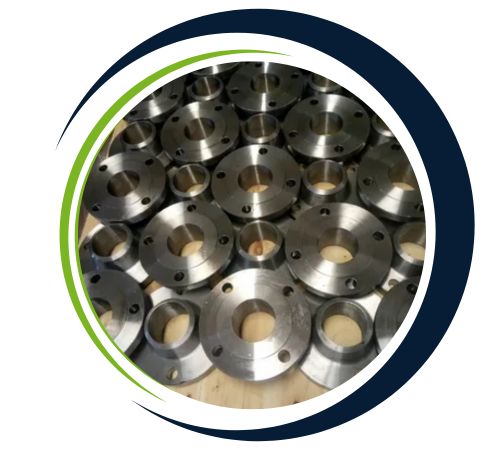

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of ANSI B16.5 Class 1500 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|

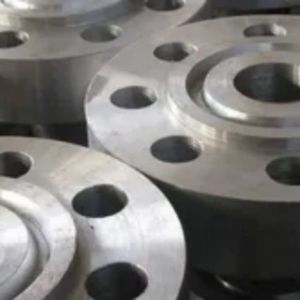

| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 1500 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized Manufacturer of |
|
| Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Normal pipe size | Outside dia. of flange | Minimum thickness of flange | Overall Length | Bolt Circle | No. and Size of Holes | O.D. of raised face | |||
| Welding neck | Slip-on & socket welding | Lap Joint | |||||||
| O | Q | Y | Diam. | No. | dia. | R | |||
| 1/2 | 12.1 | 22.3 | 60.3 | 31.8 | 31.8 | 82.5 | 4 | 22 | 35 |
| 3/4 | 130 | 25.4 | 69.8 | 34.9 | 34.9 | 89.0 | 4 | 22 | 43 |
| 1 | 149 | 28.6 | 73.0 | 41.3 | 41.3 | 101.5 | 4 | 25 | 51 |
| 1-1/4 | 159 | 28.6 | 73.0 | 41.3 | 41.3 | 111.0 | 4 | 25 | 64 |
| 1-1/2 | 178 | 31.8 | 82.6 | 44.4 | 44.4 | 124.0 | 4 | 29 | 73 |
| 2 | 216 | 38.1 | 101.6 | 57.2 | 57.2 | 165.0 | 8 | 25 | 92 |
| 2-1/2 | 244 | 41.3 | 104.8 | 63.5 | 63.5 | 190.5 | 8 | 29 | 105 |
| 3 | 267 | 47.7 | 117.5 | 73.0 | 73.0 | 203.0 | 8 | 32 | 127 |
| 3-1/2 | |||||||||
| 4 | 311 | 54.0 | 123.8 | 90.5 | 90.5 | 241.5 | 8 | 35 | 157 |
| 5 | 375 | 73.1 | 155.5 | 104.8 | 104.8 | 292.0 | 8 | 41 | 186 |
| 6 | 394 | 82.6 | 171.4 | 119.1 | 119.1 | 317.5 | 12 | 38 | 216 |
| 8 | 483 | 92.1 | 212.7 | 142.9 | 142.9 | 393.5 | 12 | 45 | 270 |
| 10 | 584 | 108.0 | 254.0 | 158.8 | 177.8 | 482.5 | 12 | 51 | 324 |
| 12 | 673 | 123.9 | 282.9 | 181.0 | 219.1 | 571.5 | 16 | 54 | 381 |
| 14 | 749 | 133.4 | 298.4 | 241.3 | 635.0 | 16 | 60 | 413 | |
| 16 | 826 | 146.1 | 311.2 | 260.4 | 705.0 | 16 | 51 | 470 | |
| 18 | 914 | 162.0 | 327.0 | – | 276.2 | 474.5 | 16 | 73 | 538 |
| 20 | 984 | 117.8 | 355.4 | 292.1 | 832.0 | 16 | 80 | 584 | |
| 24 | 1168 | 203.2 | 406.4 | 330.2 | 990.5 | 16 | 92 | 692 | |

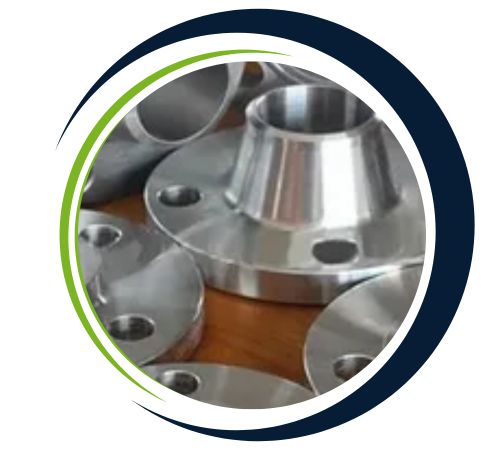

Made from high-quality materials like carbon steel, stainless steel, and alloy steel, ANSI B16.5 Class 1500 Flanges offer impressive tensile and yield strength. They can handle pressures of up to around 3705 psi at 38°C (100°F), depending on the material. These flanges also boast remarkable resistance to corrosion, temperature changes, and mechanical stress. Their precise design guarantees a snug fit and tight seal, ensuring reliability in both high-pressure and high-temperature settings while also being easy to weld and machine.
Yes, we offer custom sizes for ANSI B16.5 Class 1500 Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
You’ll find ANSI B16.5 Class 1500 Flanges commonly used in oil and gas pipelines, refineries, petrochemical plants, power generation facilities, and offshore drilling platforms. They’re perfect for connecting pipes, valves, and pumps in high-pressure flow systems that require absolute integrity and safety. Popular types include weld neck, slip-on, blind, and socket weld flanges. With their outstanding durability, resistance to corrosion, and cost-effectiveness, ANSI B16.5 Class 1500 Flanges from Steve Flanges are the top choice for engineers and industries in need of reliable, long-lasting, and efficient piping solutions.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
